• Size
• 1.14
• mm

• Resolution
• 135x240
• Dot

• Model No.
• TFT0114B

• Product Type
• IPS

• Shape of Display
• Bar

• Outline Size
• 17.6x31x1.6
• mm

• Active Area
• 14.86x24.91
• mm

• View Angle
• All Angles

• Drive IC
• ST7789V

• Interface
• SPI

• Touch Screen
• NA

• OP
• -20°C~+70°C
• ℃

• Remark

•
  Smart Home
•
  Medical Devices
•
  Smart Home
•
  Medical Devices
•
  Smart Home

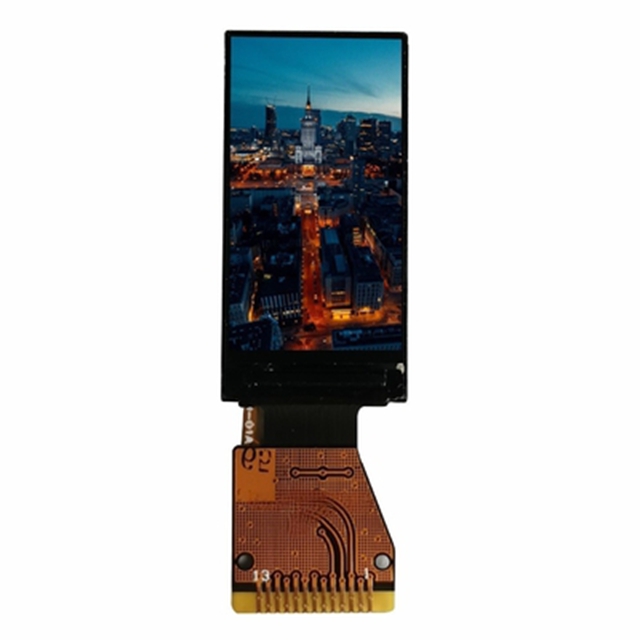

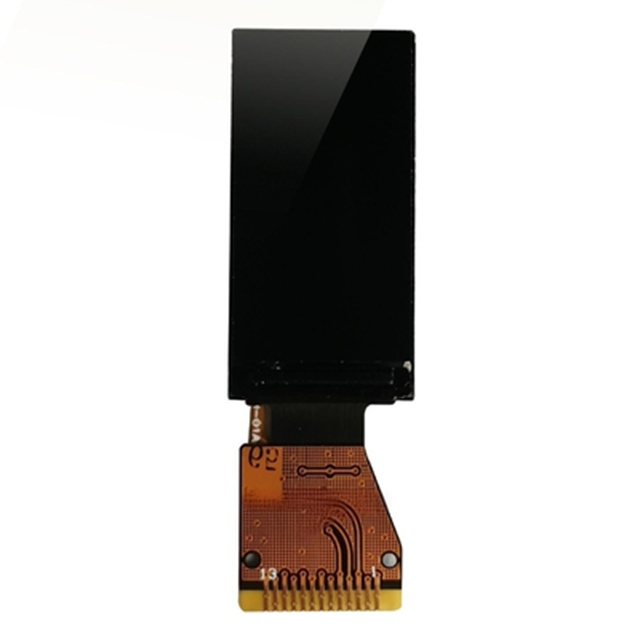

1.14 Inch TFT LCD Display 135×240 SPI Interface

This 1.14-inch TFT LCD display module is a compact, high-reliability color display designed for space-constrained embedded applications. Featuring a 135 × 240 RGB resolution, the display delivers clear text rendering and vivid color performance, making it ideal for small handheld devices, status panels, and portable electronics.

The module adopts a TFT LCD transmissive structure with a free viewing direction, optimized for flexible product orientation during system design. It integrates the ST7789V2 driver IC and supports a 4-wire SPI interface, enabling easy connection to common MCUs and development platforms such as STM32, ESP32, and other low-power controllers.

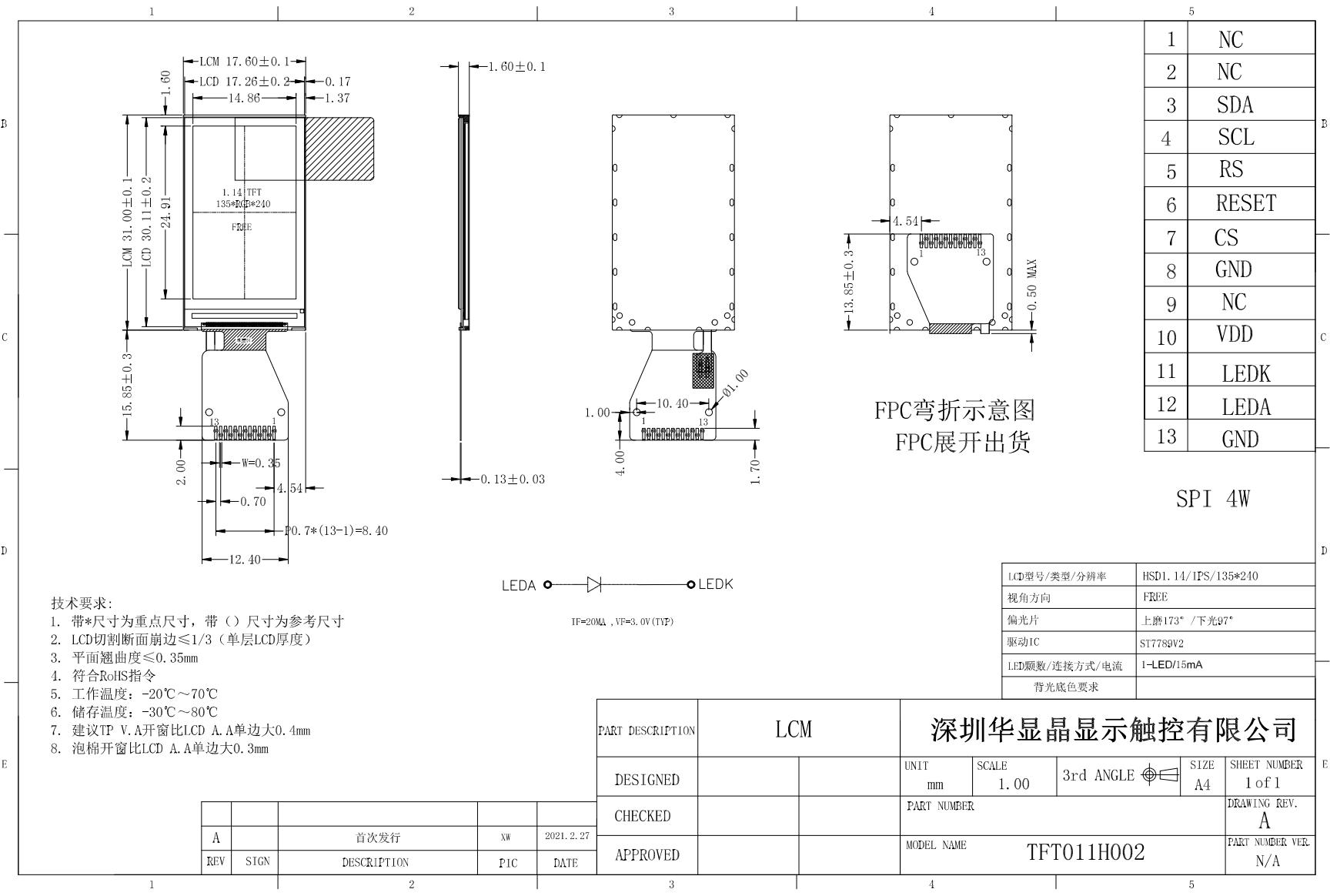

Mechanically, the display offers a slim profile with an LCM thickness of approximately 1.60 mm and excellent flatness control (≤0.35 mm), supporting compact and lightweight product designs. The white LED backlight is driven by a single LED architecture with a typical current of 15 mA, balancing brightness and power efficiency.

Designed for industrial-grade reliability, this TFT LCD module supports a wide operating temperature range from –20°C to +70°C and complies with RoHS environmental standards, making it suitable for long-term supply and mass production projects.

Features

• 1.14-inch TFT LCD display module

• Resolution: 135 × 240 (RGB)

• SPI 4-wire interface

• Integrated ST7789V2 driver IC

• Slim mechanical design

• Free viewing direction

• White LED backlight, low power consumption

• RoHS compliant




Applications

• Wearable devices

• Handheld instruments

• Smart meters

• Portable medical equipment

• IoT display terminals

• Industrial status indicators

Technical Specifications

Except the available standard LCD/TFT/OLED display products, Huaxianjing provides tailor made displays. The extensive portfolio makes it possible to create tailor-made solutions for customers to fit their application. We have the advanced display technologies available to use in your design and if there is anything you want to change about one of our existing LCD/TFT/OLED displays, we can make it happen.

With more than 15 years experience, our sales and engineering team will be with you through the entire development process and will ensure the semi or fully customization a successful display tailored made to the individual application.

Our LCD/TFT/OLED custom design solutions are available in different options according to customer requirements. Huaxianjing can offer various options on backlight type, pin and connector, cable, resistive touch screen (RTP) and projected capacitivetouch screen (CTP)  or anti-reflective or anti-glare coating, or custom cover lens, ZIF PPC or customized PCB board or a fully custom solution for your product application, as well as System Integrated Solution.
