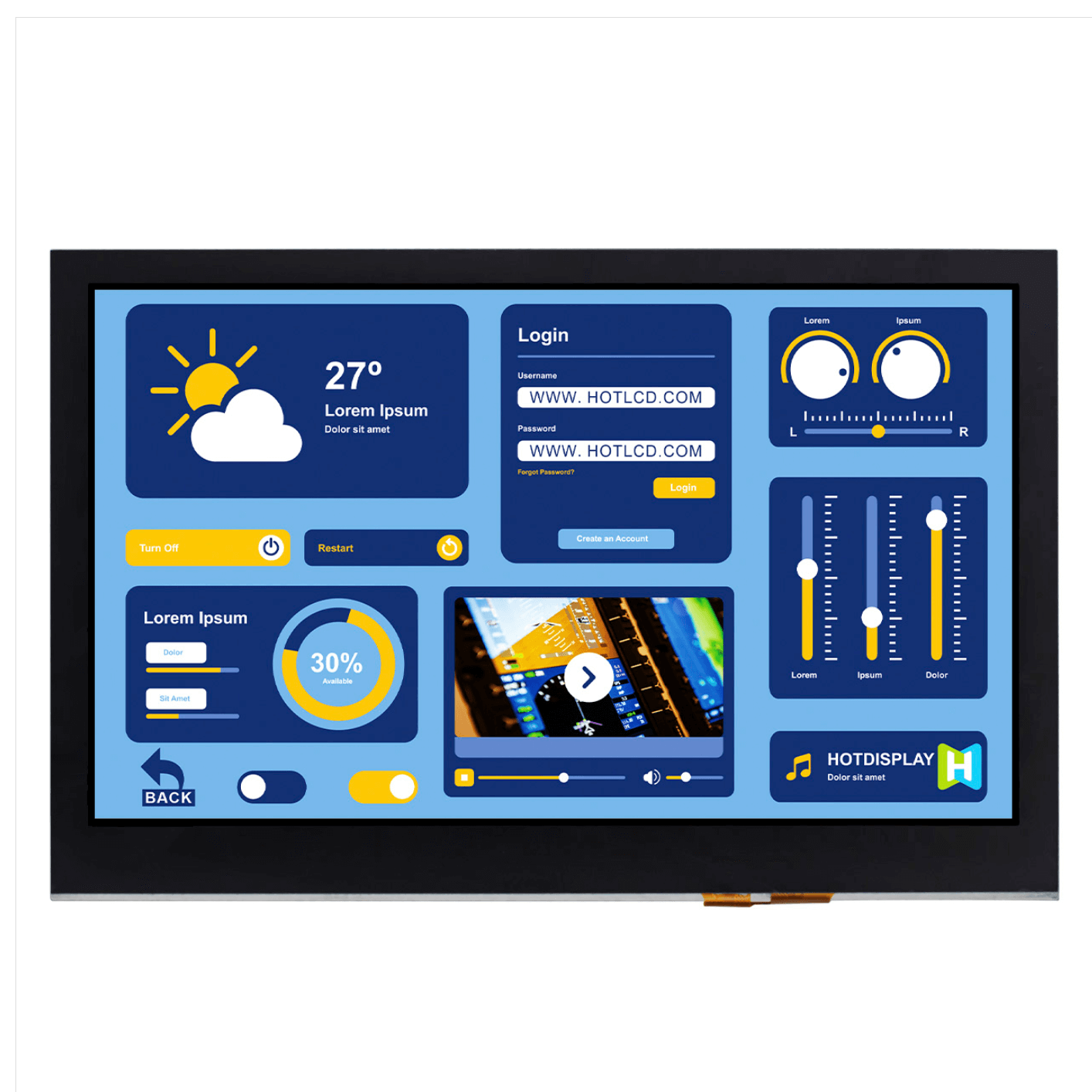

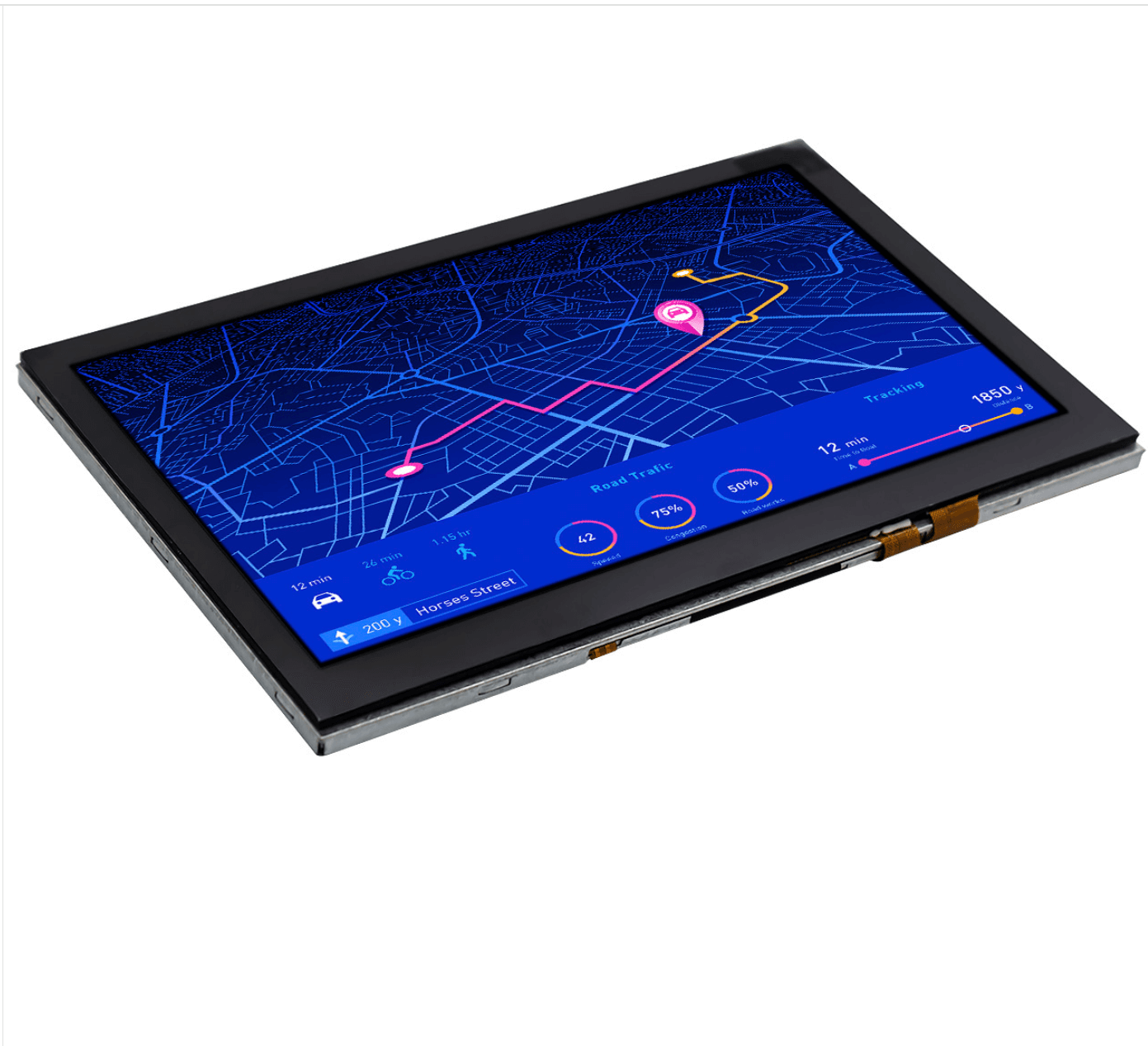

5.0 inch Ultra Wide Temperature IPS TFT LCD Module 1000Nits 480x272 Pixels

Model No. TFT050BT3

This is a automotive-grade circular IPS capacitive touch TFT-LCD screen with a display diameter of 5.0 inches and a resolution of 480x272 pixels. This circular TFT display is composed of an IPS TFT-LCD panel with a built-in NV3047 driver IC

Product Features

· Model NO. : TFT050BT3

· Size: 5.0

· Resolution: 480x272

· Shape of Display: Rectangular

· Interface: RGB

· Driver IC: NV3047

· Touch Screen: CTP

+ Add inquiry

Technical Specifications Table

Size
5.0
mm

Resolution
480x272
Dot

Model No.
TFT050BT3

Product Type
IPS

Shape of Display
Rectangular

Outline Size
120.7x75.8x3
mm

Active Area
108x64.8
mm

View Angle
All Angles

Drive IC
NV3047

Interface
RGB

Touch Screen
CTP

OP
-30°C~+85°C
℃

Remark
For Vehicle/Industrial Control

Application field description

Product Introduction

5.0 inch TFT LCD Display 480×272, IPS Full View, High Brightness 1000 nits, RGB Interface

Short Description

The TFT050XUB067 is a 5.0 inch IPS TFT LCD module with 480×272 resolution and 1000 cd/m² high brightness, delivering vivid color and wide viewing angles. Designed with the ILI6485D driver IC and RGB 24-bit interface, it provides stable, high-quality display performance for industrial and outdoor applications.

Product Overview

The 5.0 inch TFT050XUB067 module features IPS full viewing angle technology (All O’Clock viewing direction) for consistent and accurate color reproduction from any direction.

With 16 white LEDs (12V / 120mA) backlight and 1000 cd/m² minimum luminance, it ensures excellent sunlight readability, making it ideal for outdoor and industrial environments.

The ILI6485D driver IC supports RGB-565 parallel interface with strong compatibility across multiple control boards.

The display’s Normally Black mode provides high contrast and deep color tone, while the operating temperature range from –35°C to +85°C guarantees reliable performance in extreme conditions.

Key Features

5.0 inch TFT LCD, 480×RGB×272 resolution – Clear and vivid visual performance.

IPS full viewing angle (All O’Clock) – Uniform brightness and color from any direction.

High brightness: 1000 cd/m² (typ.) – Excellent readability under sunlight.

Driver IC: ILI6485D – Stable performance and broad MCU compatibility.

16 white LED backlight, 12V / 120mA – Long life and low power consumption.

Wide temperature range: –35°C to +85°C – Industrial-grade reliability.

RGB 24-bit interface (RGB-565) – Suitable for a wide range of embedded systems.

Applications

Outdoor Industrial Equipment – Control panels, data loggers, diagnostic devices.

Smart Home and Building Control Systems – Wall-mounted control units and energy monitors.

Automotive Displays – Instrument and infotainment interfaces.

Handheld Devices and Terminals – Portable measurement and control devices.

Medical and Diagnostic Equipment – High-brightness GUI display screens.

Technical Specifications

Parameter	Specification
Model Number	TFT050XUB067
Display Type	TFT, IPS, Transmissive
Display Size	5.0 inch (Diagonal)
Resolution	480×RGB×272
Display Mode	Normally Black
Viewing Angle	All Viewing Direction (IPS)
Brightness	1000 cd/m² (Typ.)
Driver IC	ILI6485D
Interface	RGB-565 Parallel
Backlight Type	16 White LEDs
Backlight Voltage / Current	12V / 120mA
Operating Temperature	–35°C ~ +85°C
Storage Temperature	–40°C ~ +85°C
Outline Dimensions (OD)	120.65(W) × 75.8(H) × 4.9(T) mm
Active Area (AA)	110.88(W) × 62.83(H) mm
Surface Treatment	Anti-glare, Hard coating
Compliance	RoHS / REACH Certified
